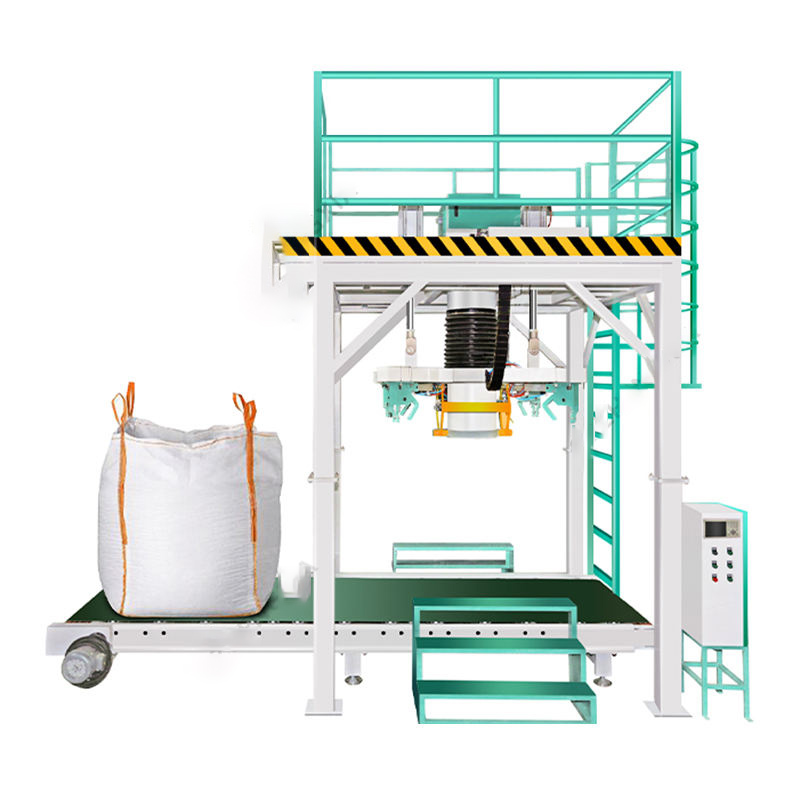

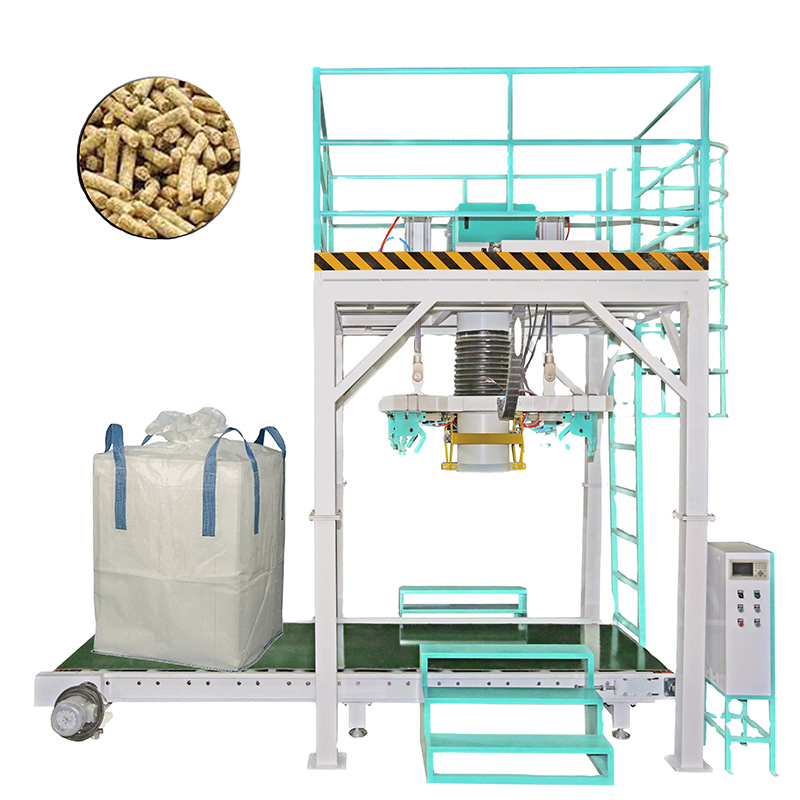

When the particle packaging machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow feeding mode. When the material weight reaches the set value of fast feeding, the fast feeding is stopped and the slow feeding is maintained. When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process. At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag. After the material is put out, the unloading door of the weighing bucket will be closed automatically; after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next station.

PRODUCT DESCRIPTION

Model	DCS-1000( granular materials)	DCS-1000 ( powder materials)	DCS-1000(irregular shaped materials)
Material	SUS304 Contact parts	SUS304 Contact parts	SUS304 Contact parts
Gross Weight	1000KG	12000kg	11000kg
Packing Capacity	10-30 bags/h	10-30 bags/h	10-30 bags/h
Weighing Range	300-2000kg or Customized	300-2000 kg or Customized	300-2000kg or Customized
Quantify Precision	±0.2%	±0.2%	±0.2%
Power	0.5 kw	1.5 kw	2 kw

Power Supply:AC 220V/380V 50 HZ 1P/3P Customized

Air Source:0.5~0.6MPa 0.36m³/min

Application Materials:Applicable for packing granular or particulate materials such as chemistry, fertilizer, grain, rice, sand, wood pellets, animal feed, urea, phosphate, PP, PE granules, construction materials, etc.

Application:Our packaging machines are widely used in feed, fertilizer, grain, chemical industry,building materials, starch, food, rubber and plastics, hardware, minerals,covering more than 20 industries, more than 3,000 kinds of materials.It can suit different type of top open mouth bags such as woven bags, sacks, kraft paper bags, plastic bags etc, and bag top closed by sewing or heat sealing.

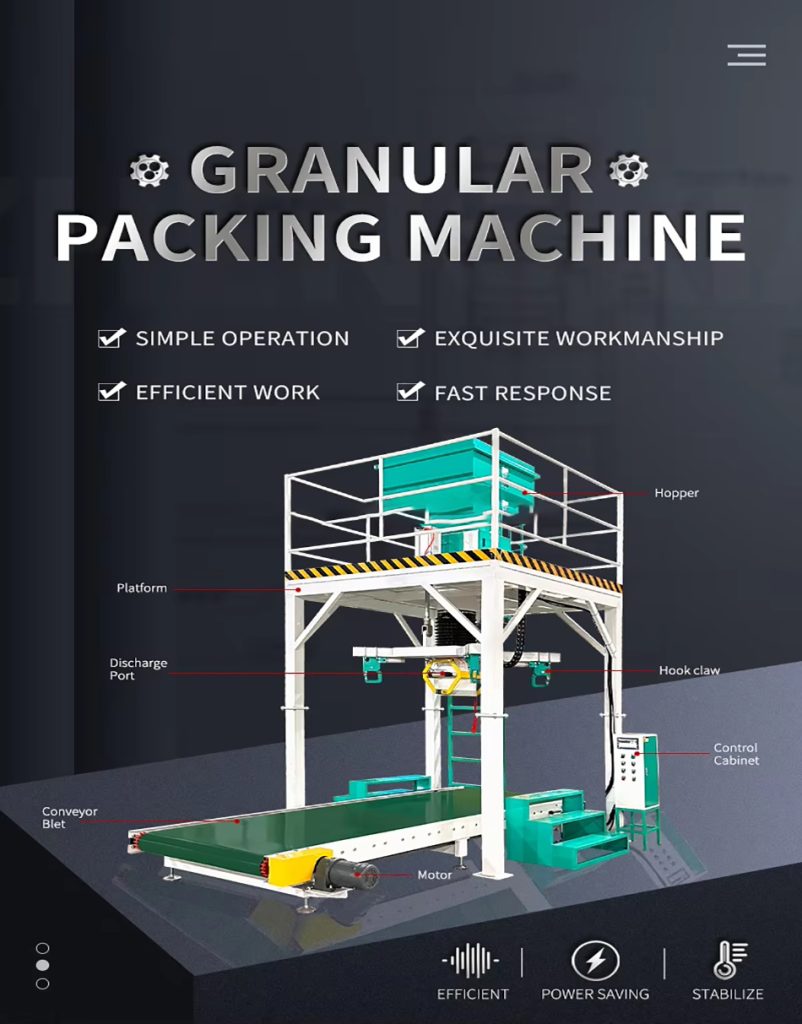

Packing Machine Workflow:

Giving the bag (loading the bag) → automatically clamps the bag→ material is automatically quantitatively weighed and filled into bags→ automatic bag release /bag holding/bag transfer→ automatic label feeding /folding /or heat sealing/or sewing→ entering the next process such as stacking on pallet and wrapping.
Advantage:

-Wide packing range, high precision, it can match well with conveyor and sewing machine.
-Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.
-The main material body is carbon steel, with painted plastic. And material contact part is stainless iron, corrosion

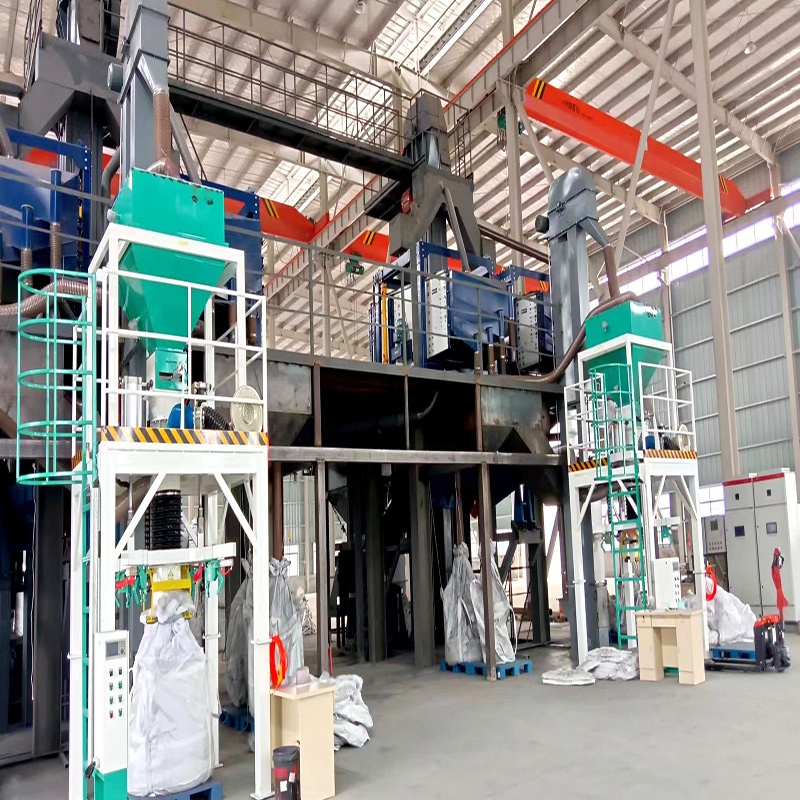

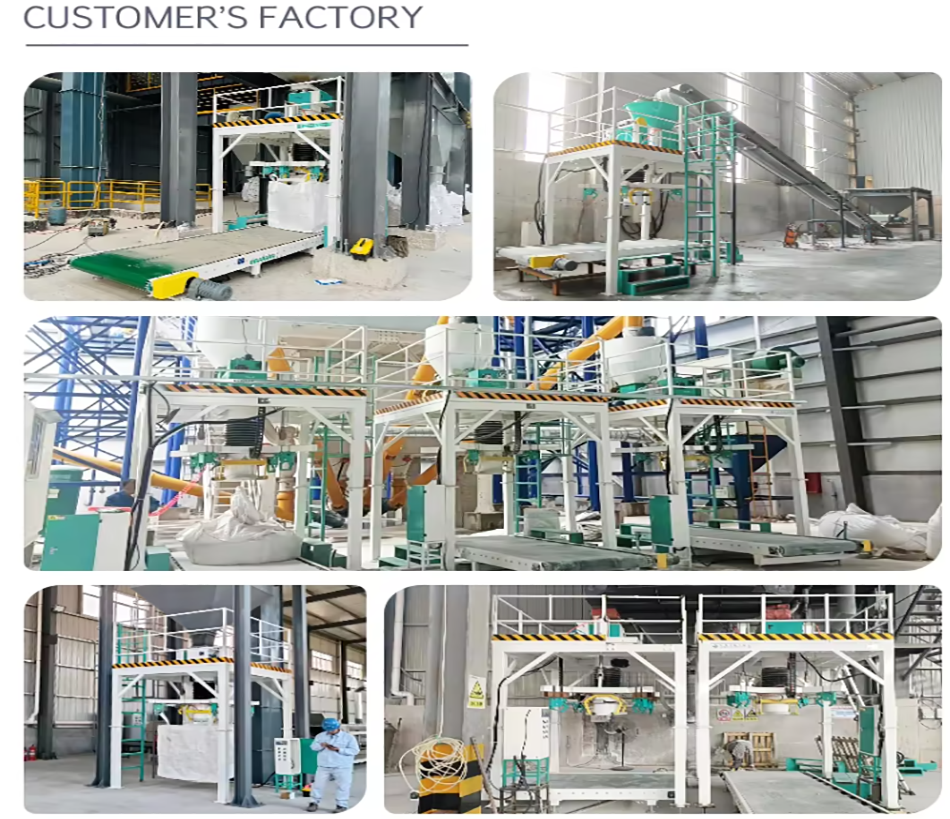

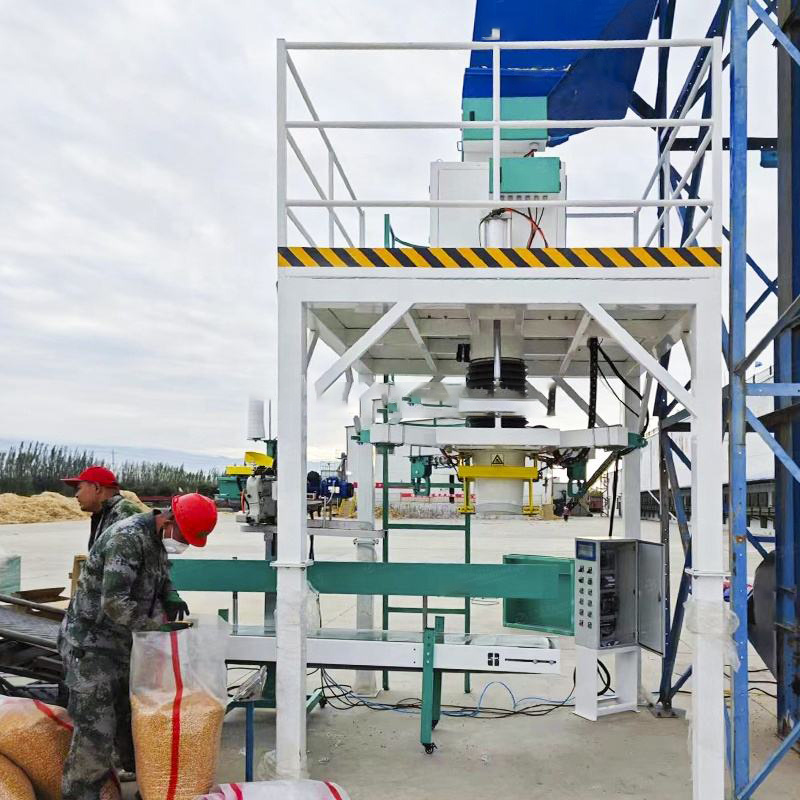

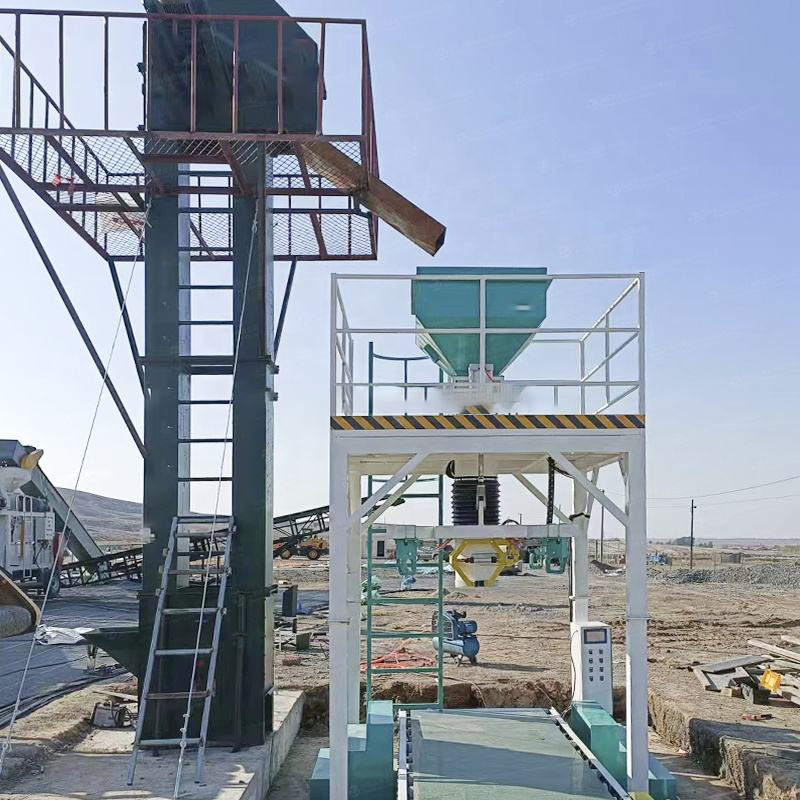

PROJECT DISPLAY

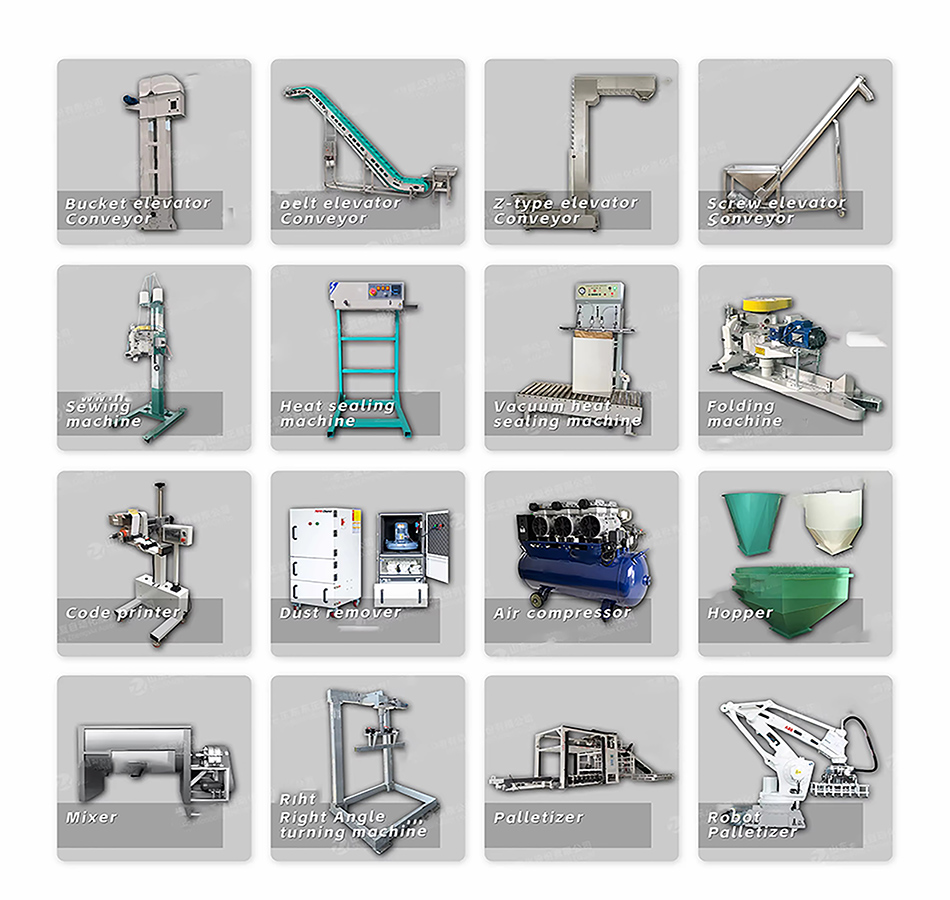

OPTIONAL

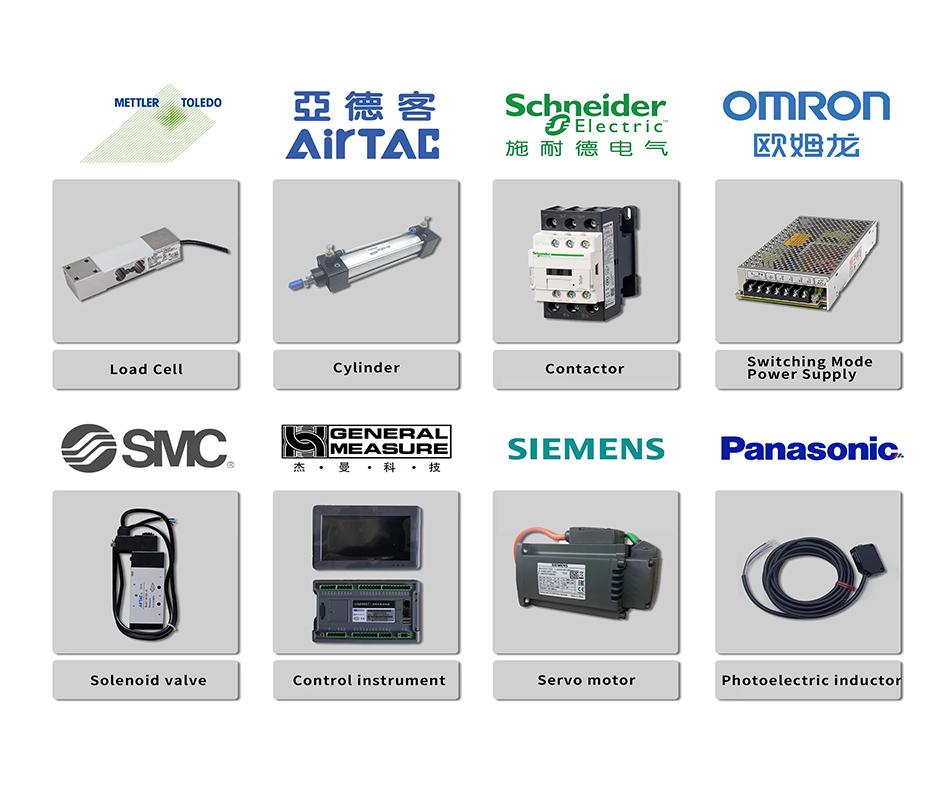

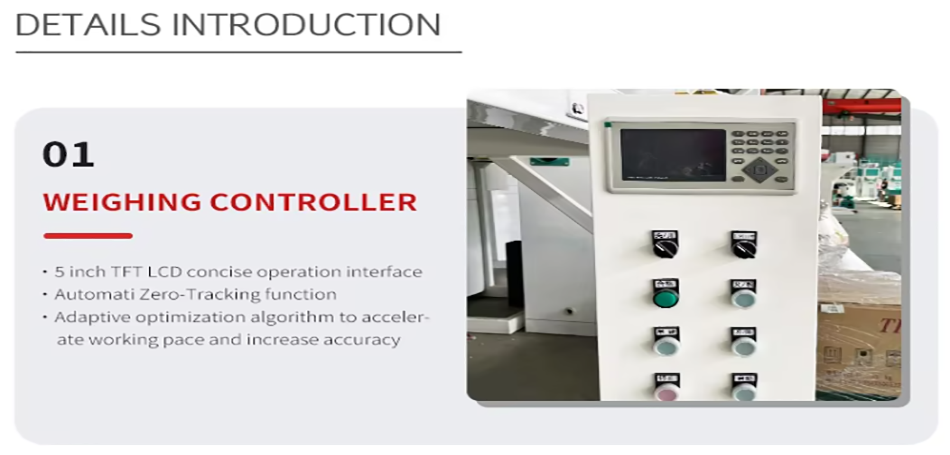

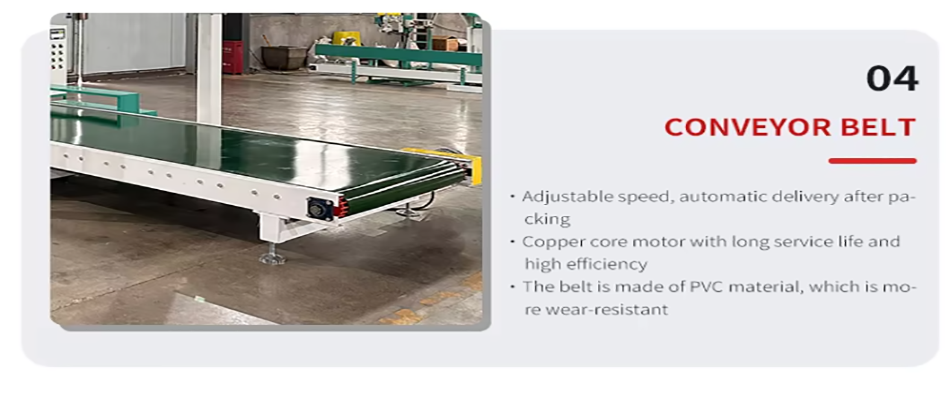

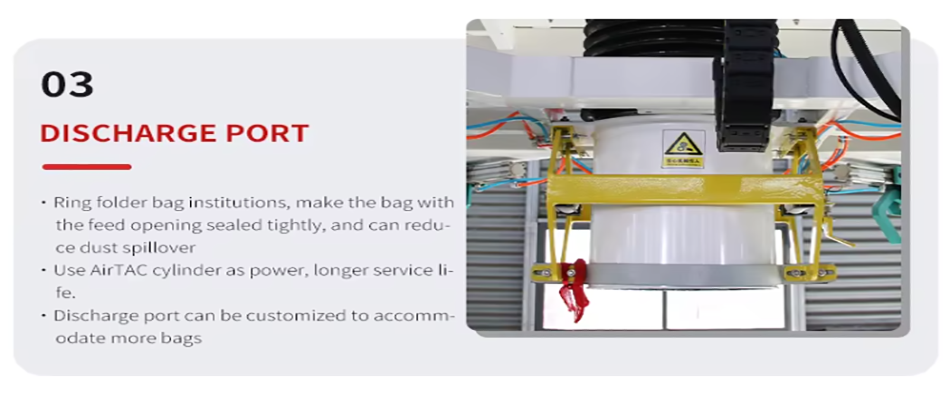

OUR CONFIGURATION

COMPANY PROFILE

BENSON Intelligent Equipment (Shandong) Co., Ltd. is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals. The company actively promotes the development model of “production, learning and research” and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering. Its capabilities and various technical indicators are at a high level. In order to comprehensively improve its market competitiveness, the company has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, BENSON Intelligent Equipment (Shandong) Co., Ltd. can fully provide system technical solutions and precision manufacturing of equipment. At the same time, we have a complete after-sales service system to provide you with high-quality technical support and after-sales service.

Company Qualifications

PACKAGING & DELIVERY

Customer feedback

FAQ

Title goes here.

Q1: May I know how long it takes to get the machine after transfer?

A1: Usually, if the machine you need is a standard type, we can ship it within 7 days. Customized types are welcome, and the delivery time is about 20-25 working days. Q2: How long is the product warranty period?

A2: The product warranty period is 12 months. Q3: Can you help me pack other goods together into the container?

A3: Yes, of course. If most of the products are purchased from us, and other products are also purchased from other suppliers, you can ask other suppliers to send the products to our factory (Tai’an City, Shandong Province). We help you pack all your products into one container. Arrange everything. Q4: After the machine is finished, how to check the quality of the machine?
A4: We have made video calls with customers in seminars for on-site inspection on zoom, Microsoft, Teamviewer, whatspp, skype and wechat.
