Key attributes
| machinery test report | Provided | Voltage | 380V, Customer’s Demand |
| video outgoing-inspection | Provided | packaging type | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, |
| packaging material | plastic, Paper, Metal, Glass, Wood | warranty | 1 year |
| driven type | Electric | automatic grade | Automatic |
| application | Beverage, Commodity, Food, Machinery & Hardware, | key selling points | High-accuracy |
| place of origin | Shandong, China | brand name | Leadworld |
| dimension(l*w*h) | L1200xW1200x150(mm)(can be customized) | core components | Bearing, motor, Pump, Gear, PLC, Pressure vessel, Engine, |
| Name | Single Type Column Palletizer | Capacity | 5-12cartons/min |
| Pallet size | L1200xW1200x150(mm) | Stacking way | Servo |
| Stacking H | ≤1800mm | Air consumption | 0.8m3/min |
| Conveyor H | 650mm | Pallet conveyor H | 300mm |
Product descriptions from the supplier
Video Description

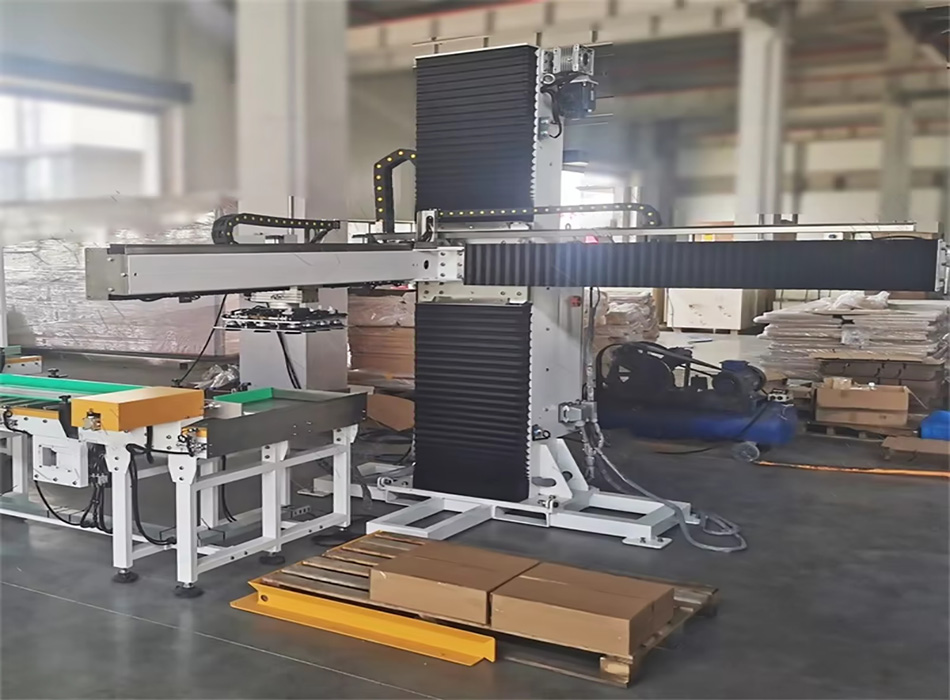

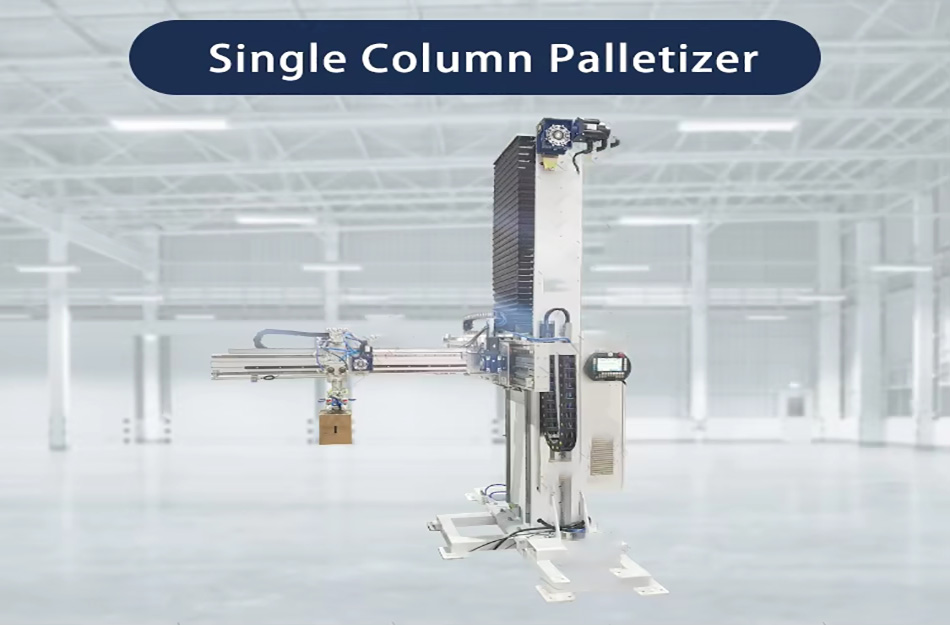

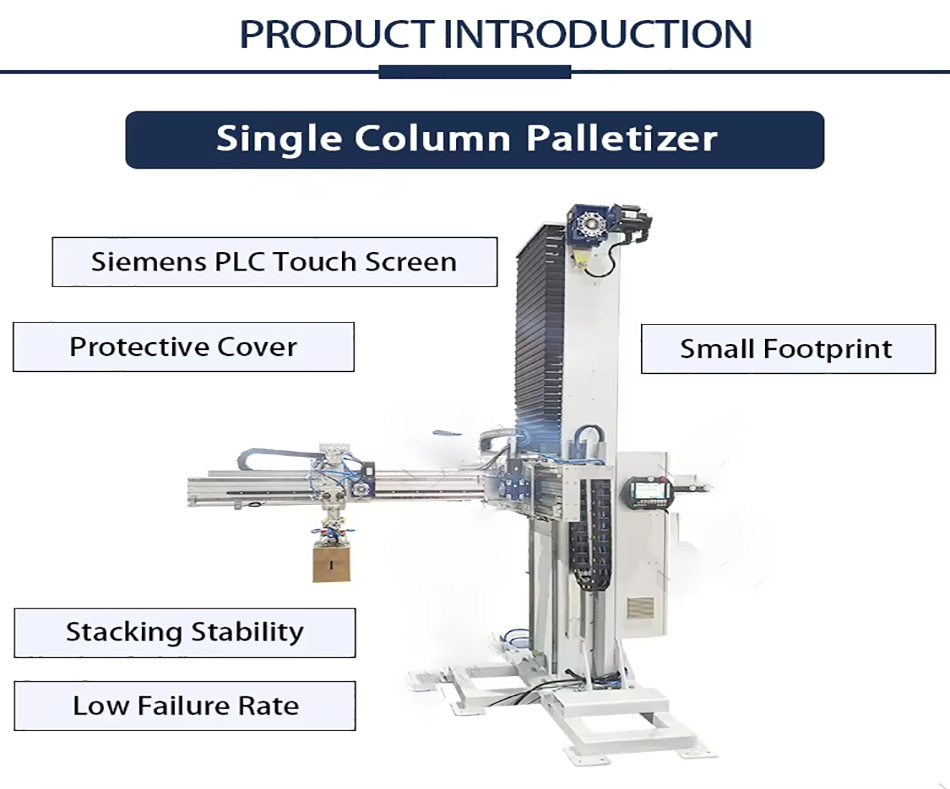

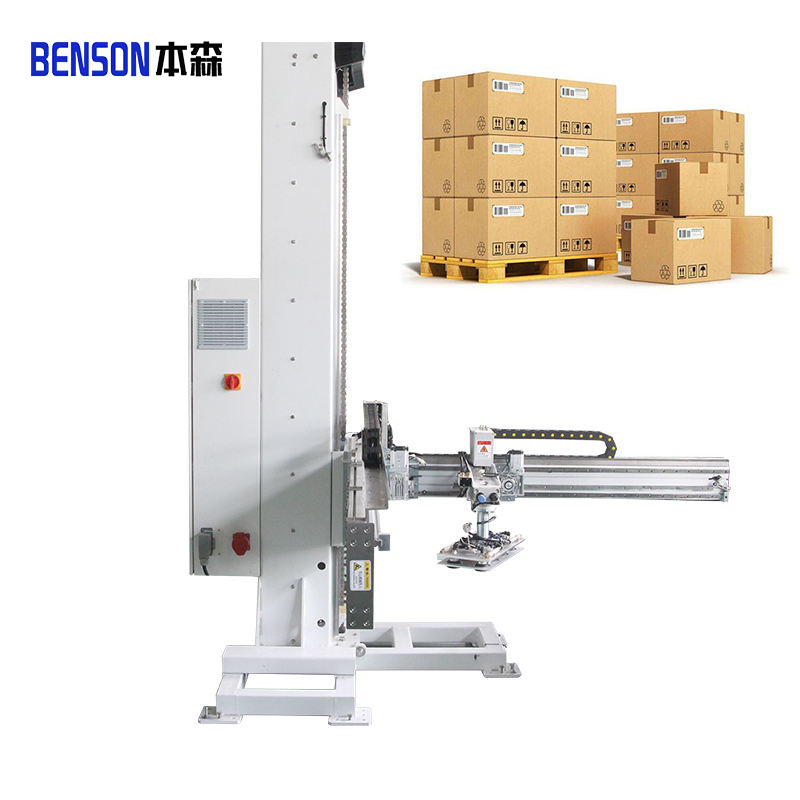

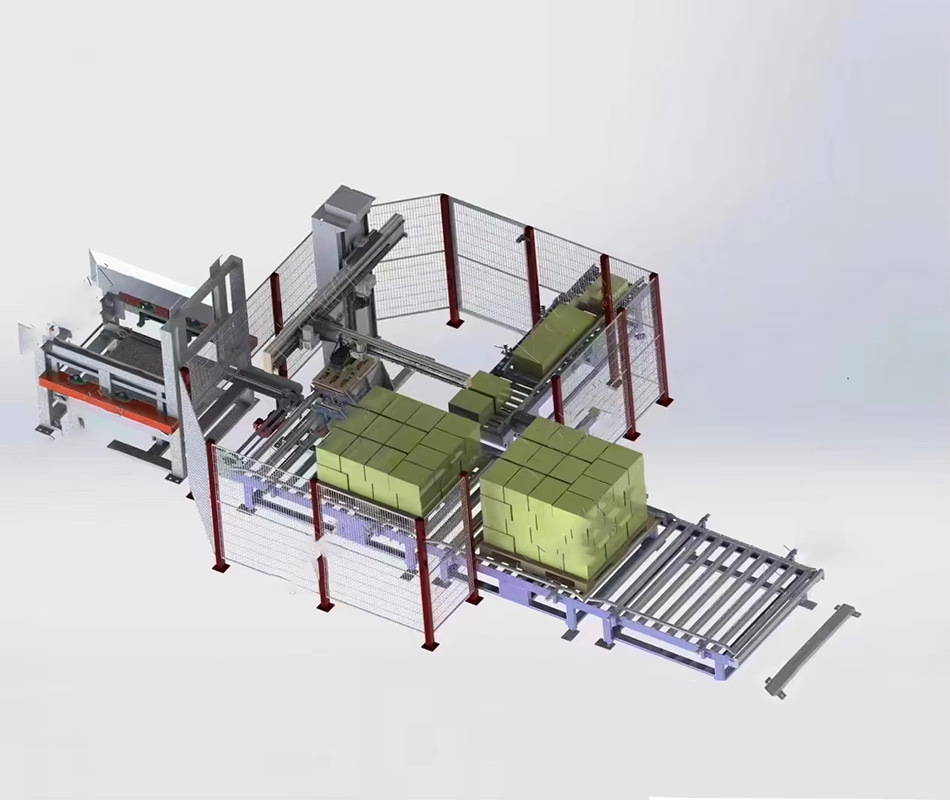

High-speed fully automatic single-column palletizer stacker consists of a conveyor, carton sorting system, palletizer host, full-layer gripper, pallet dispenser, full pallet conveyor, empty pallet conveyor and control system.
More Questions, Please Consult Us!
| Capacity | 5-12cartons/min | 5-10cartons/min |
| Pallet size | L1200xW1200x150(mm) | L1200xW1200x150(mm) |
| Stacking way | Servo | Servo |
| Stacking H | ≤1800mm | ≤1900mm |
| Equipmen size | 3800*1000*1400mm | 2620x2440x3500mm |
| Power | 380V 7KW | 380v/3P7.2kw |
| Air consumption | 0.8m3/min | 210L/min 6kg/cm² |
| ConveyorH | 650mm | 650mm |
| Pallet conveyorH | 300mm | 650mm |
| Max weight | 1000KG | 1500KG |
Work flow:

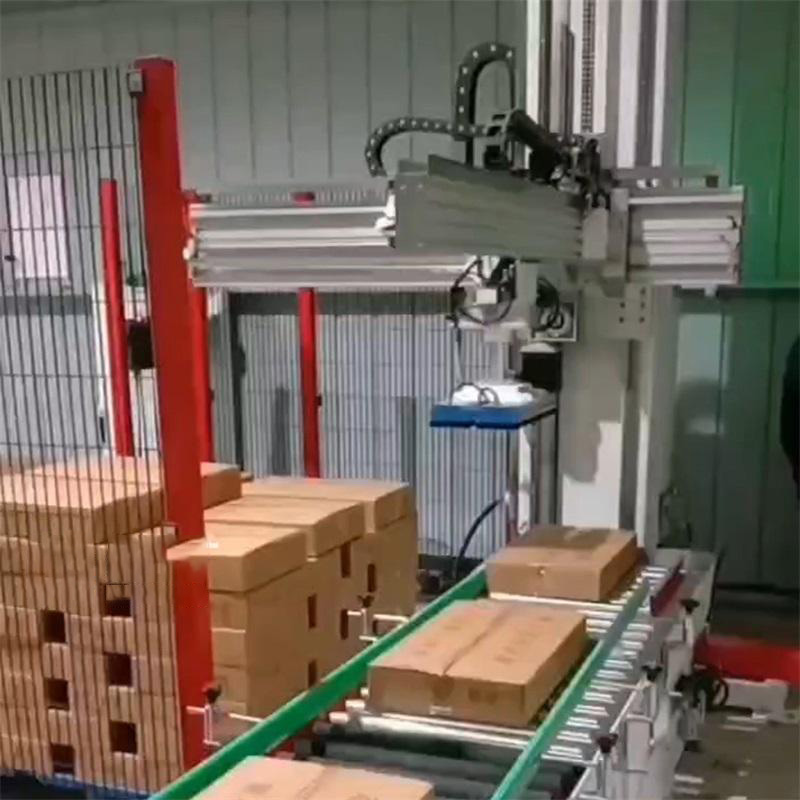

During the production process, cartons or packaging materials are conveyed to the carton sorting system through a conveyor, and the sorting system arranges the cartons in a certain order. After sorting is completed, the gripper clamps the entire layer of cartons into the gripper, and the single column lifts the gripper and moves horizontally to place the entire layer of cartons on the pallet; repeat the above actions until the entire pallet is stacked.
High-speed fully automatic single-column palletizer stacker is mainly used to automatically palletize various cartons and PE film shrink packaging boxes according to the palletizing mode set by the program until the palletized finished products are stacked layer by layer on the pallet.
This model is suitable for the process flow of production lines such as food and beverages, canned foods, and is also suitable for the packaging operations of bottled and canned products in other industries.
This series of palletizers can independently complete continuous automatic operations such as product feeding, group sorting, empty pallet feeding, whole-layer palletizing and full pallet discharging.
The design can also be improved to achieve the palletizing function according to the special requirements of different products of customers. For example, it can be replaced with a single-box grabbing head or a full-layer box grabbing head, and an empty pallet storage and distribution device can be optionally equipped to work in conjunction with the palletizer host.

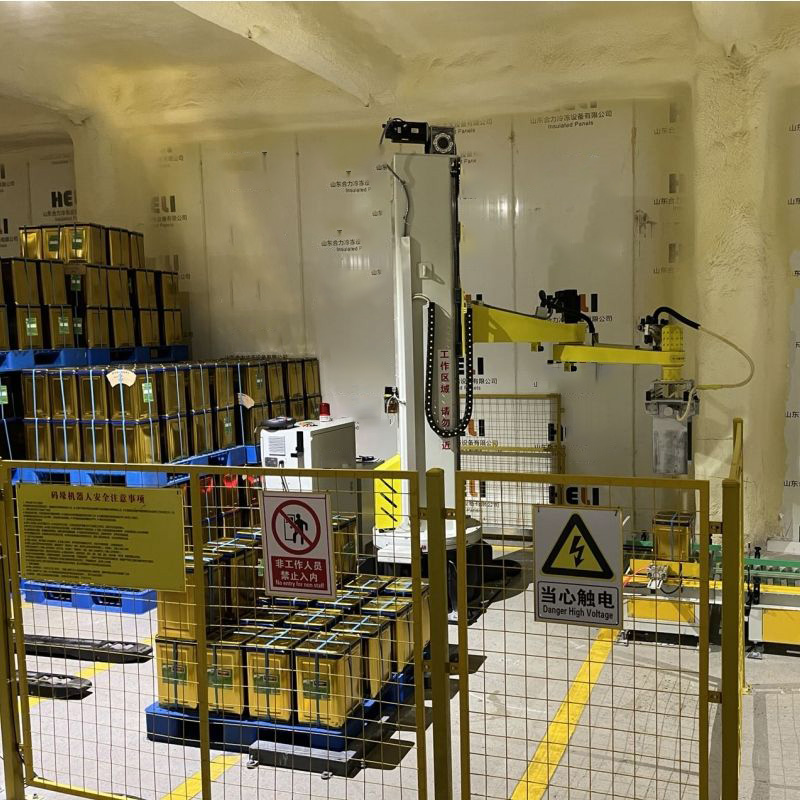

Product Show
Company Introduction
BENSON Intelligent Equipment (Shandong) Co., Ltd. is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals. The company actively promotes the development model of “production, learning and research” and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering. Its capabilities and various technical indicators are at a high level. In order to comprehensively improve its market competitiveness, the company has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, BENSON Intelligent Equipment (Shandong) Co., Ltd. can fully provide system technical solutions and precision manufacturing of equipment. At the same time, we have a complete after-sales service system to provide you with high-quality technical support and after-sales service.
Company Qualifications
Exhibition
PACKAGING & DELIVERY
FAQ
Q1: May I know how long it takes to get the machine after transfer?
A1: Usually, if the machine you need is a standard type, we can ship it within 7 days. Customized types are welcome, and the delivery time is about 20-25 working days. Q2: How long is the product warranty period?
A2: The product warranty period is 12 months. Q3: Can you help me pack other goods together into the container?
A3: Yes, of course. If most of the products are purchased from us, and other products are also purchased from other suppliers, you can ask other suppliers to send the products to our factory (Tai’an City, Shandong Province). We help you pack all your products into one container. Arrange everything. Q4: After the machine is finished, how to check the quality of the machine?
A4: We have made video calls with customers in seminars for on-site inspection on zoom, Microsoft, Teamviewer, whatspp, skype and wechat.
