Key attributes
Industry-specific attributes
| function | FILLING, Wrapping, Labeling, Sealing |
| packaging type | Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Pouch |
| packaging material | plastic, Paper, Metal, PE |
| Voltage | 380V/50(60)HZ |
| Filling Material | liquid |
Other attributes
| Weight (KG) | 500 |
| application | Food, Beverage, Commodity, Chemical, Machinery & Hardware |
| automatic grade | Automatic |
| warranty | 1.5 years |
| after-sales service provided | Online support |
| driven type | Electric |
| place of origin | Shandong, China |
| brand name | BENSON |
| dimension(l*w*h) | 1600x900x1750 |
| key selling points | Easy to Operate, Low Noise Level, Energy saving, High-accuracy, Long Service Life, High Safety Level, Flexible Manufacturing, Competitive Price, High Rigidity, Eco-Friendly, High Productivity, Multifunctional, Other |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| core components | motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox |

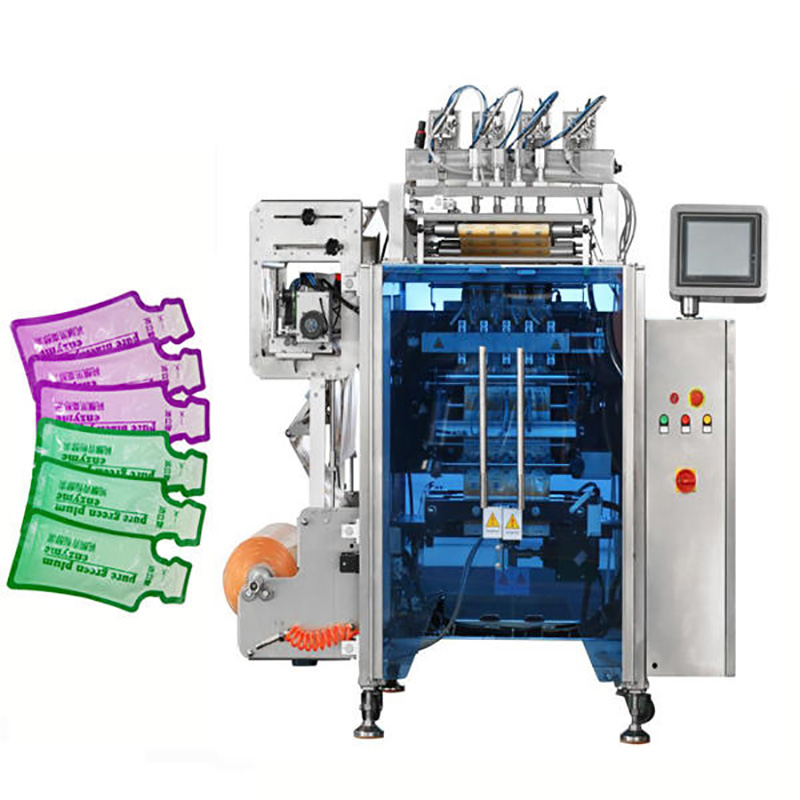

| Product name | WP-DS liquid multilanes packing machine |
| Packing lines | 2-8 |
| Film thickness | 0.05mm,0.1mm |
| Film width | 300 |
| Film roll diameter | 350 |
| Each line packing speed | 25-55/min/lane |
| Bag size range | 50≤L≤130;50≤W≤120 |
| Gas pressure | 0.8MPa |
| Gas consumption | 0.4m3/min |
| Weight | 500KG |
Product descriptions from the supplier
Video Description
Products Description
| MODEL | WP-DS300 | WP-DS400 | WP-DS600 | WP-DS800 |
| Voltage | 4.5kw/380v/50(60)hz | 5.5kw/380v/50(60)hz | 6.5kw/380v/50(60)hz | 7kw/380v/50(60)hz |
| Machine Size | 1600*900*1750 | 1650*1000*1750 | 1750*1200*1750 | 1850*1400*1850 |
| Machine Weight | 500KG | 600KG | 700KG | 750KG |
Paking LINES:1-10(The specific lanes number is determined according to the bag wide and model)
Bag Size:50≤L≤130 50≤W≤120(CAN BE CUSTOMIZED)
Packing speed:25-55/MIN/LANE (specifically related to packaging materials)
FILM ROLL DIAMETER:350 Gas pressure:0.4-0.8Mpa
Features of multifunctional vertical high-speed packaging machine:
◎ Convenient disassembly and assembly of film rolls.
◎ Flexible coding and bag length adjustment.
◎ Easy disassembly and assembly of the film slitting blade.
◎ CNC integrated molding.
◎ Vertical sealing spring type force balance buffer.
◎ Independent air pressure adjustment of center sealing of package.
◎ High precision ball screw and servo motor driven.
◎ Handwheel type precise & convenient adjustment of the relative position of the cutter and the easy tear notch cutter with quick locking structure.
◎ Multi-group safety protection devices, prevent personal injury and machine crash damage.
Company Introduction
BENSON Intelligent Equipment (Shandong) Co., Ltd. is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals. The company actively promotes the development model of “production, learning and research” and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering. Its capabilities and various technical indicators are at a high level. In order to comprehensively improve its market competitiveness, the company has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, BENSON Intelligent Equipment (Shandong) Co., Ltd. can fully provide system technical solutions and precision manufacturing of equipment. At the same time, we have a complete after-sales service system to provide you with high-quality technical support and after-sales service.
Company Qualifications
Exhibition
PACKAGING & DELIVERY
FAQ
Q1: May I know how long it takes to get the machine after transfer?
A1: Usually, if the machine you need is a standard type, we can ship it within 7 days. Customized types are welcome, and the delivery time is about 20-25 working days. Q2: How long is the product warranty period?
A2: The product warranty period is 12 months. Q3: Can you help me pack other goods together into the container?
A3: Yes, of course. If most of the products are purchased from us, and other products are also purchased from other suppliers, you can ask other suppliers to send the products to our factory (Tai’an City, Shandong Province). We help you pack all your products into one container. Arrange everything. Q4: After the machine is finished, how to check the quality of the machine?
A4: We have made video calls with customers in seminars for on-site inspection on zoom, Microsoft, Teamviewer, whatspp, skype and wechat.
