Working principle of the fully automatic single-column bagging palletizer

The robotic arm or grabbing device grabs the items accordingly, and then moves the items to the stacking position through the lifting and lowering of the column and the telescopic and rotating actions of the robotic arm. The items are stacked in multiple layers and columns according to the preset stacking rules. After completing one stacking, it automatically returns to the origin to prepare for the next grabbing and stacking. The system continuously monitors the operating status of each component during the whole process.

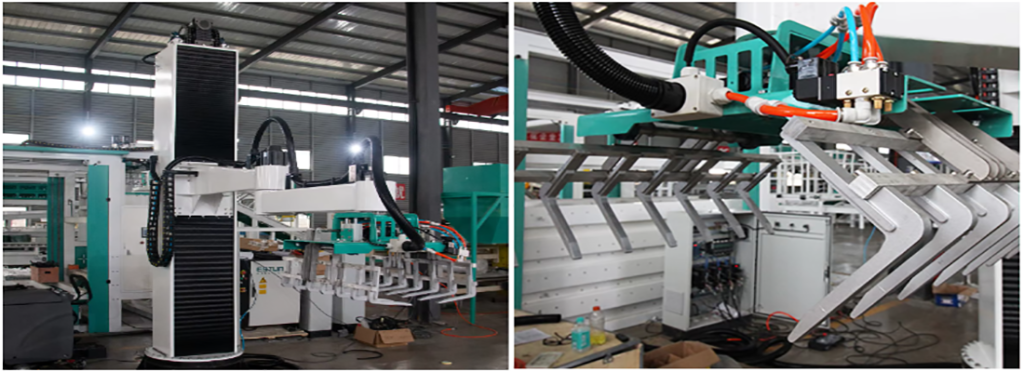

MACHINE SHOW

Provide services
1.Free CAD drawing design
2.Provide teaching services
3.Provide on-site installation services
4.Provide one year warranty

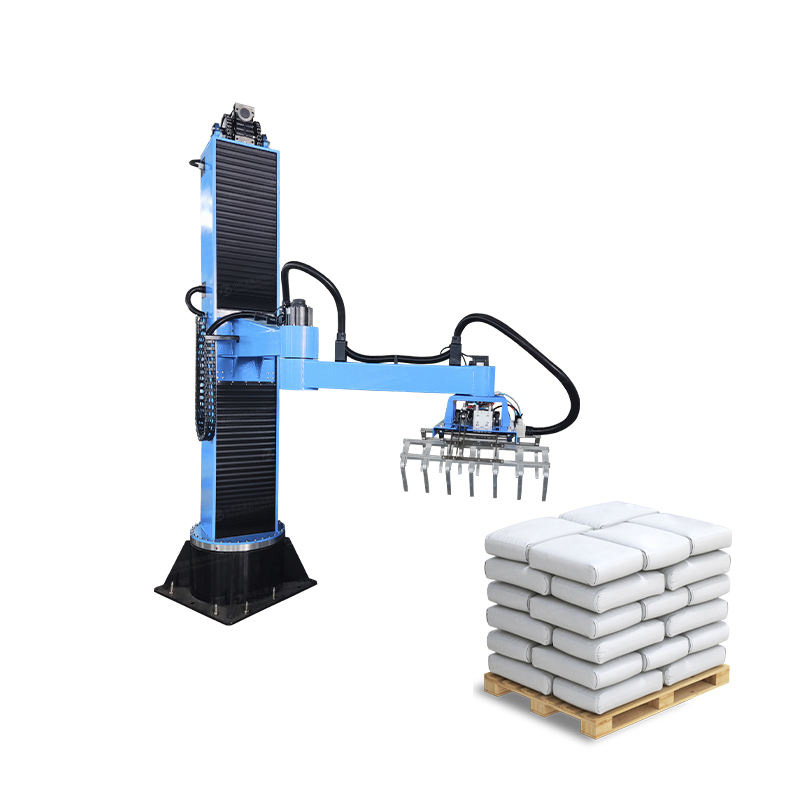

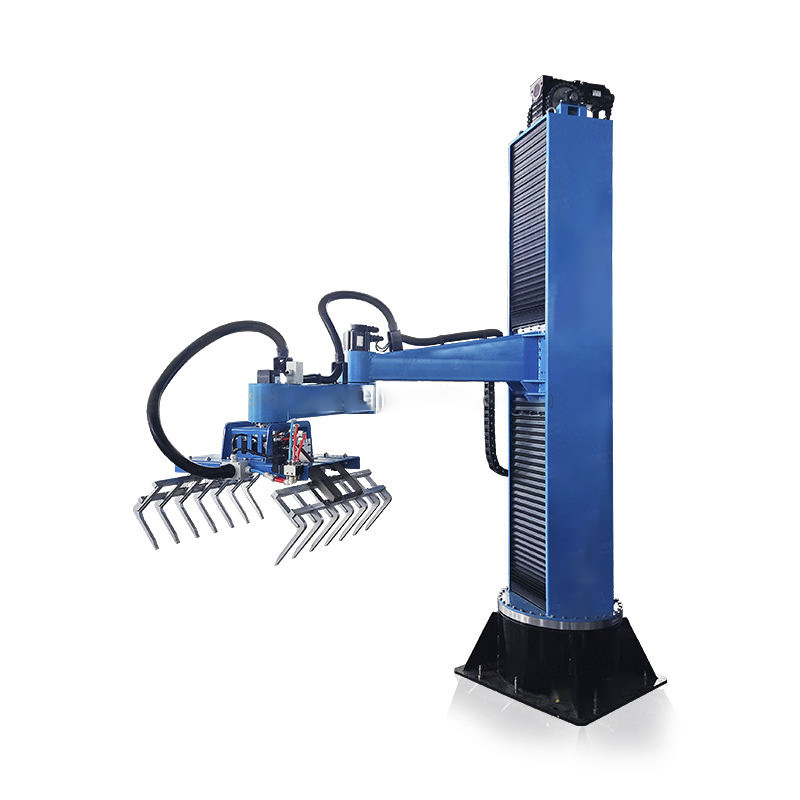

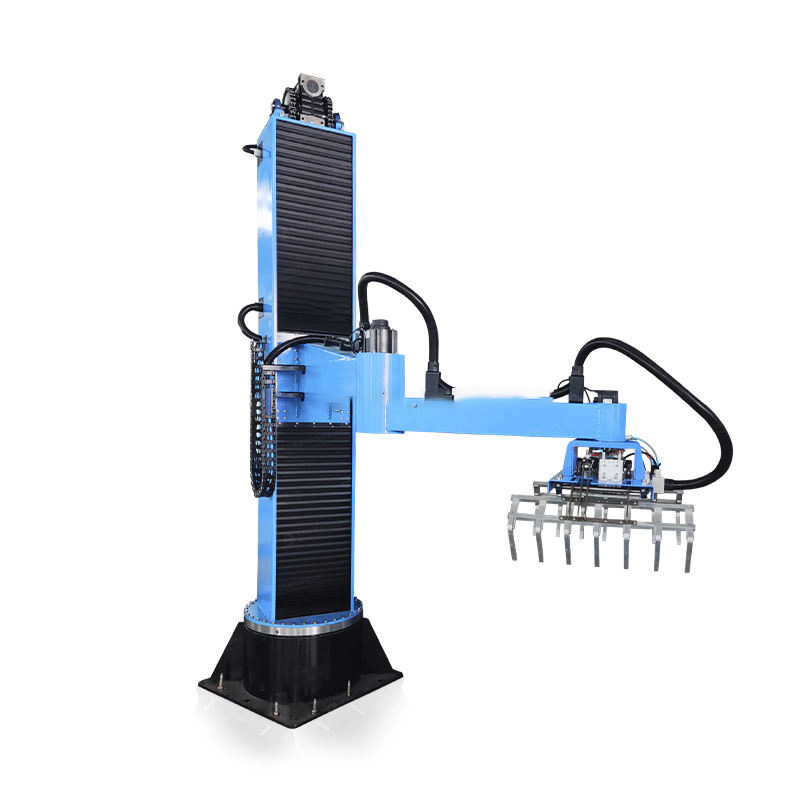

Column palletizer
•Fast palletizing speed and stable palletizing can greatly save labor costs.
•Small size saves space and is convenient for transportation
•Can be used for palletizing bags, cases, boxes, bottles and barrels
•The palletizing process is fully automated without manual intervention

Gripper

Pneumatic drive, sturdy, lightweight, and flexible
Customizable grippers for grabbing bags, cases, bottles, barrels

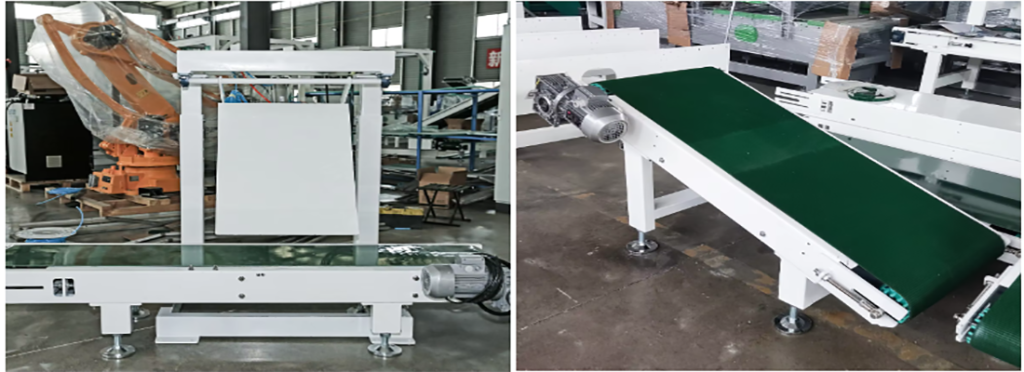

Bag Kicker

Standing bags are transported to this position, and through the detection of photoelectric switches, it is judged whether the bag has reached the position of pushing the bag. After arriving, the cylinder works and kicks the bag down to a horizontal state and transports it to the Incline Conveyor.

Incline Conveyor

The Incline conveyor is mainly used for the transportation of the product. Inclined conveying makes the material inside the bag flat, ready for the next step of shaping and at the same time play the role of cache packing bags .

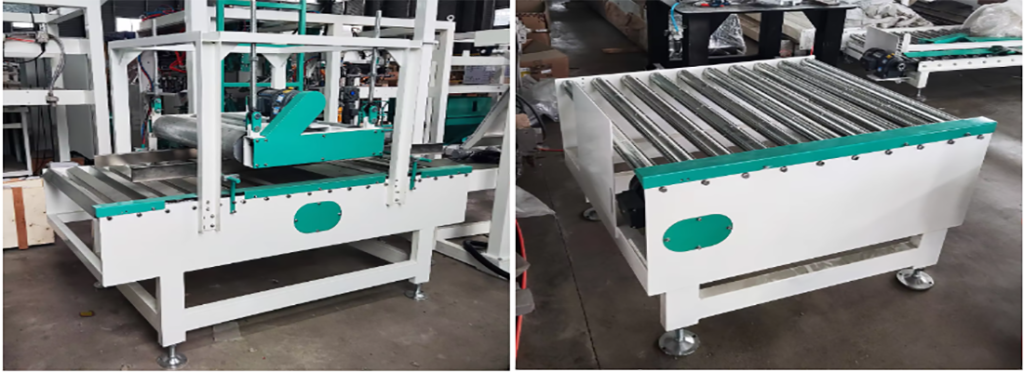

Bag Flattener

The bag is shaped and flattened by the square roller vibrating conveyor , so that the stacking shape is neat and secure,The shaping conveyor can open a certain distance between the products, which is convenient for photoelectric detection and subsequent palletizing.

Roller Conveyor

The bag is conveyed to the Roller Conveyor, the sensors on both sides will detect the bag, stop the conveying and link the palletizer to grab the bag.

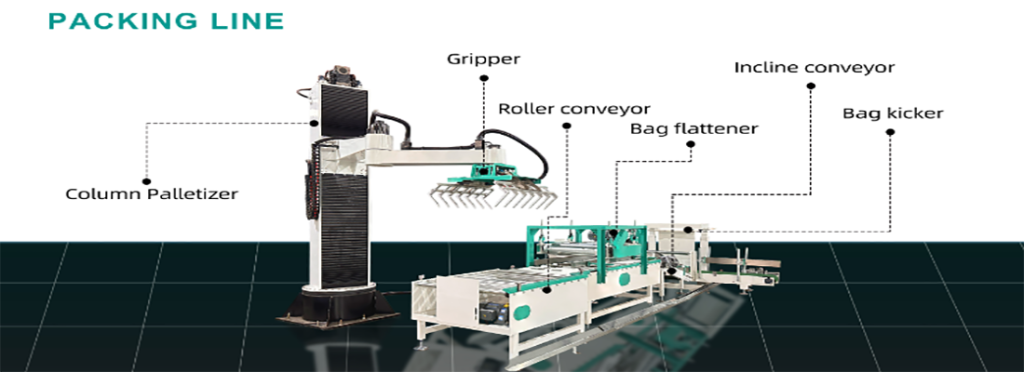

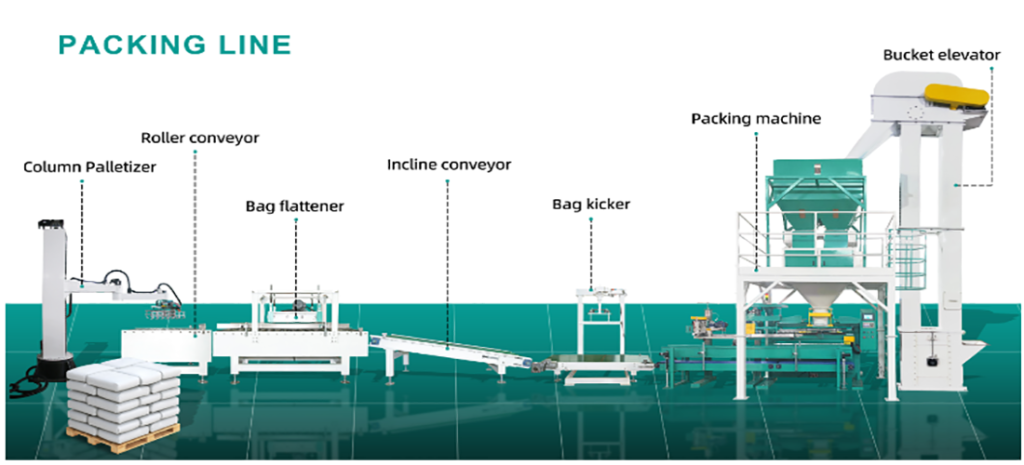

MACHINE COMPONENTS

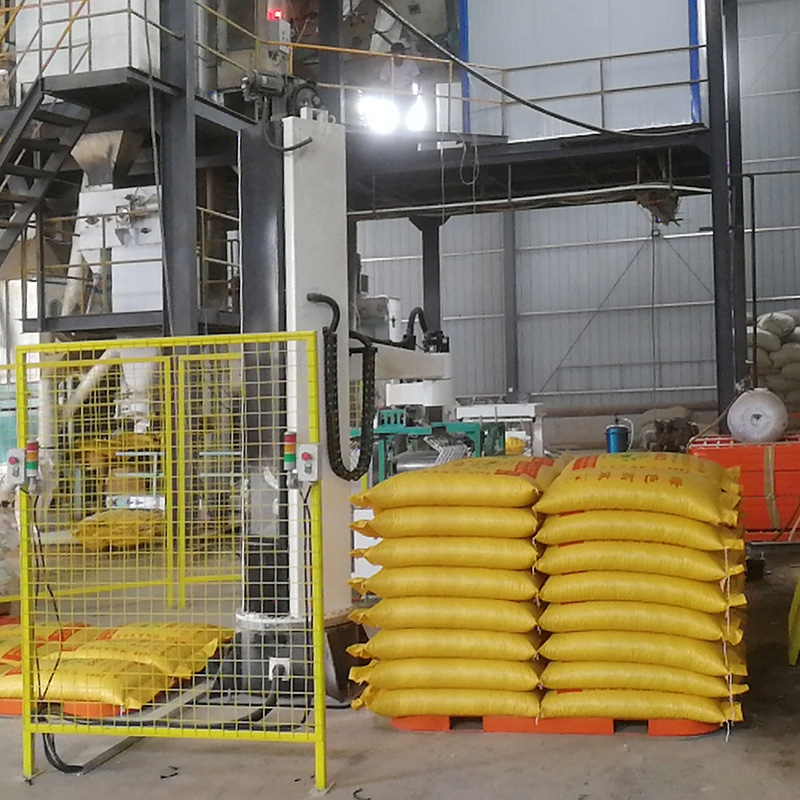

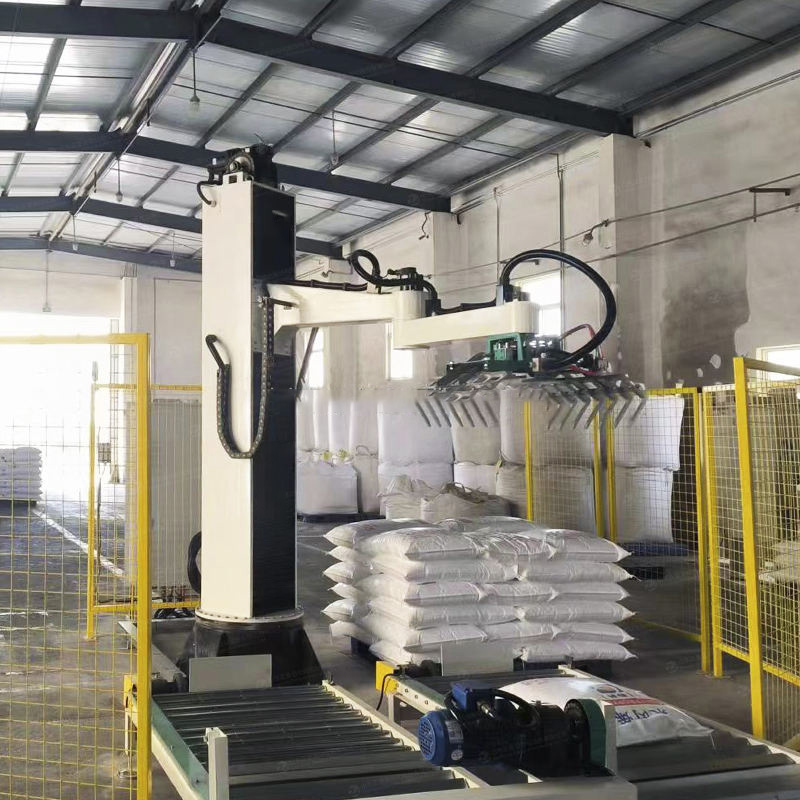

PROJECT SHOW

Customer feedback

COMPANY PROFILE

BENSON Intelligent Equipment (Shandong) Co., Ltd. is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals. The company actively promotes the development model of “production, learning and research” and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering. Its capabilities and various technical indicators are at a high level. In order to comprehensively improve its market competitiveness, the company has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, BENSON Intelligent Equipment (Shandong) Co., Ltd. can fully provide system technical solutions and precision manufacturing of equipment. At the same time, we have a complete after-sales service system to provide you with high-quality technical support and after-sales service.

Company Qualifications

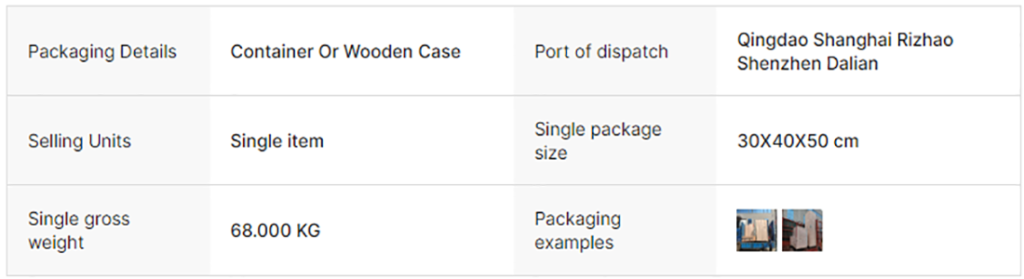

PACKAGING & DELIVERY

FAQ

Q1: Can your packing machine be customized according to our requirements?
A1: Yes, of course. We can make customized production according to your requirements, such as color, configuration, logo and so on.

Q2: How to choose suitable packaging machine?
A2: Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.

Q3: How long is the warranty on your packing machine?
A3: We will provide a one-year warranty. If there is any problem with the equipment during the warranty period, we will provide free replacement. If the warranty is exceeded, the damaged spare parts will be provided to you at the cost price. At the same time, our packaging machine adopts brand components such as Schneider, AirTAC, etc., more stable and long life time, so please do not worry about the quality, you can trust us.

Q4: Can you provide after-sales service for installation?
A4: Yes. Packaging equipment before sent to you will installation and commissioning in our factory to make sure that all components work stable, then the whole device packed in the wooden case/container, when you received the equipment do not need a lot of installation and debugging, at the same time, we will provide the corresponding image/video/manual and online phone call if you have any questions.
If you need to send engineers to the local installation, commissioning and training staff, we can also provide.We will provide manuals and detailed videos to help customer install machine.
